SBL-2稱重傳感器詳細信息請點擊：英國LCMsystems稱重傳感器獲取最新報價�。�！
產品品牌：英國LCMsystems（LOADCELL）
產品類別：合金鋼剪切梁式
產品系列：LCM梁式SBL-2系列稱重傳感器
產品型號：SBL-2-250kg,SBL-2-500kg,SBL-2-1000kg,SBL-2-2000kg
英國LCMsystems SBL-2稱重傳感器特點
▲范圍250，500，1000，2000千克。
▲合金鋼鍍鎳建設。
▲環保IP67標準密封。
▲可以用容器安裝組件，防震墊鐵或平臺腳安裝組件
產品描述：The SBL-2 series of shear beam load cells has been specifically designed for use in a wide range of weighing applications; including vessel weighing, floor scales and pallet trucks.
There are a number of mounting accessories, which are available to make installation easier and to ensure that the best system accuracy is maintained.
The SBL-2 series can be supplied on it's own or combined with our extensive range of instrumentation to provide a complete system.
英國LCMsystems SBL-2稱重傳感器技術指標
|
Rated Load (kg)
|
250, 500, 1000, 2000
|
|
Proof Load
|
150% of Rated Load
|
|
Ultimate Breaking Load
|
> 300% of Rated Load
|
|
Output
|
2 mV/V at Rated Load (±0.1%)
|
|
Accuracy
|
< ±0.02% of Rated Load
|
|
Non-Repeatability
|
< ±0.01% of Rated Load
|
|
Excitation Voltage
|
10vdc recommended, 15vdc maximum
|
|
Bridge Resistance
|
350Ω
|
|
Insulation Resistance
|
> 500MΩ @ 100vdc
|
|
Operating Temperature Range
|
-20 to +70°C
|
|
Compensated Temperature Range
|
-10 to +40°C
|
|
Zero Temperature Coefficient
|
< ±0.001% of Rated Load/°C
|
|
Span Temperature Coefficient
|
< ±0.003% of Rated Load/°C
|
|
Environmental Protection Level
|
IP67
|
|
Connection Type
|
PUR screened cable 5m long, via cable gland
|
|
Options Available
|
Vessel mounting assembly
Shock mounting assembly
Platform foot mounting assembly
Stainless Steel Versions
|

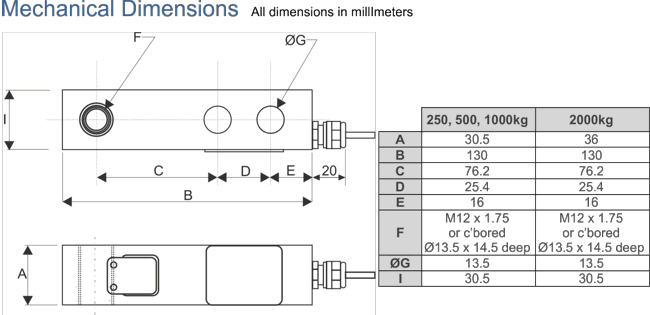

英國LCMsystems SBL-2稱重傳感器規格尺寸
Ranges 250, 500, 1000, 2000kg.
Alloy Steel Nickel Plated Construction.
Environmentally Sealed to IP67.
Can be supplied with vessel mounting assembly, shock mounts or platform foot mounting assembly
英國LCM在SBL-2系列剪切梁式稱重傳感器已用于多種稱重應用的使用而設計的;包括容器稱重，地磅及托盤車。
有許多的安裝配件，其可更容易安裝，并確保最佳的系統精度得以維持。
在SBL-2系列可以在它自己的供應或結合我們豐富的儀器范圍內提供一個完整的系統。
|
